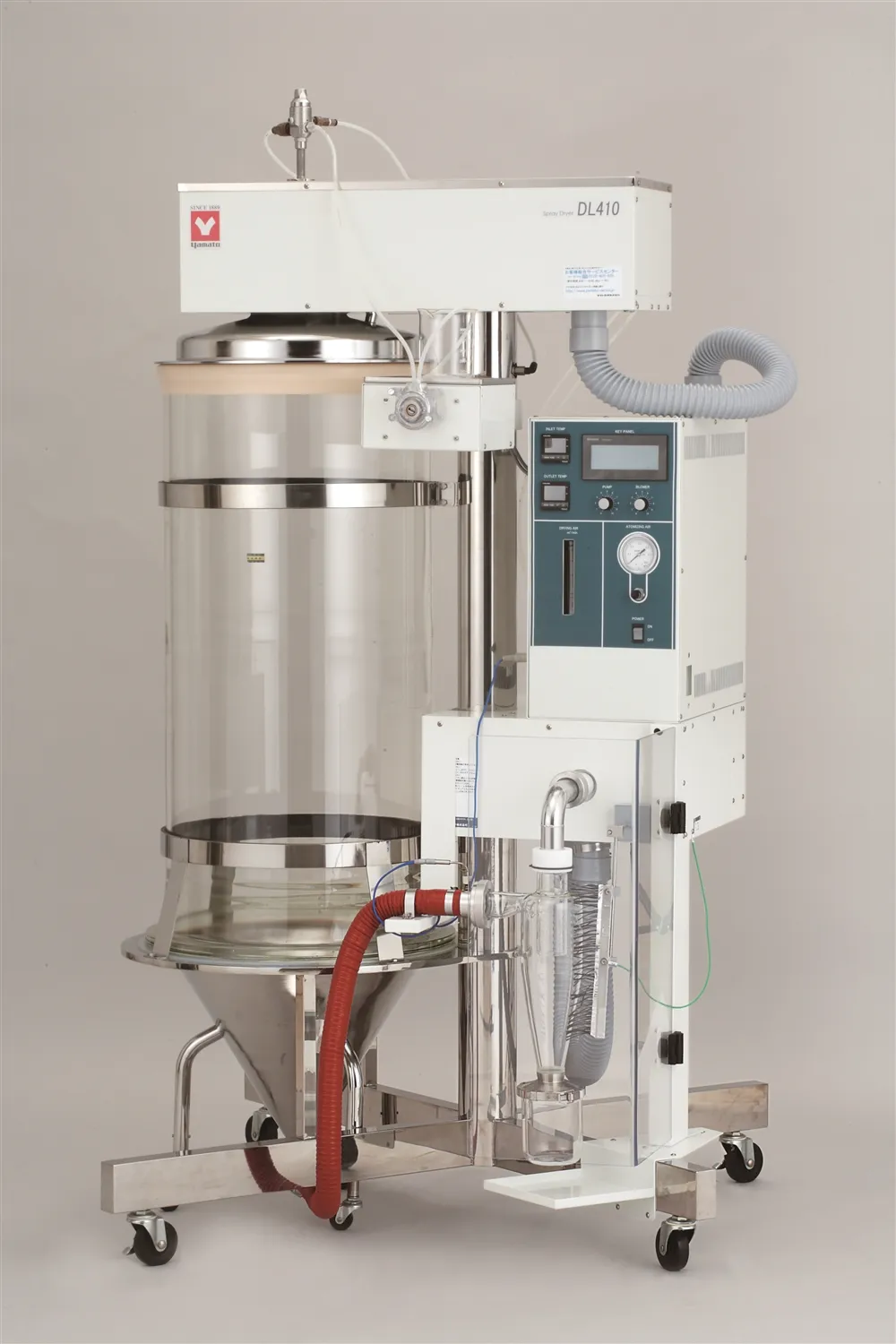

Yamato 的 DL410 大容量噴霧乾燥機可產生 1 至 100μm 的細顆粒,這被認為是在實驗室中極難生產的。這種噴霧乾燥機不需要對樣品進行過濾、分離或粉碎等預處理或後處理。此外,噴霧乾燥機操作簡單,可確保高效、快速地乾燥小型、昂貴和熱敏樣品。
我們的 DL410 噴霧乾燥機可用於試驗工廠或昂貴樣品的初步測試、微捕獲噴霧乾燥研究、作為一般實驗室乾燥方法的替代品等。GAS410 有機溶劑回收裝置也支援有機溶劑。
Yamato 的 DL410 大容量噴霧乾燥機可產生 1 至 100μm 的細顆粒,這被認為是在實驗室中極難生產的。這種噴霧乾燥機不需要對樣品進行過濾、分離或粉碎等預處理或後處理。此外,噴霧乾燥機操作簡單,可確保高效、快速地乾燥小型、昂貴和熱敏樣品。
我們的 DL410 噴霧乾燥機可用於試驗工廠或昂貴樣品的初步測試、微捕獲噴霧乾燥研究、作為一般實驗室乾燥方法的替代品等。GAS410 有機溶劑回收裝置也支援有機溶劑。
Model | DL410 | |||
---|---|---|---|---|
Water evaporation rate | Max. approx. 3000 ml/h | |||
Temperature control range | 40°C – 300°C at inlet | |||
Temperature control accuracy | ± 1°C at inlet | |||
Dry air flow rate | Max. 1.2 m³/min | |||
Air Spray Pressure Control Range | 0 – 600 kPa (0-6 kg/cm²) | |||
Spraying system | Two-way nozzle (ø of orifice: 0.7 mm) Nozzle No.3 standard supply | |||
Spray/hot air contact system | Downward spray parallel flow system | |||
Temperature controller | PID digital | |||
Temperature sensor | K thermocouple | |||
Stainless pipe heater | 2kW x 2 at 240V | |||
Sample liquid feeding pump | Quantitative peristaltic pump, flow rate variable up to 70ml/min. | |||
Solvent recovery capability (option) | Organic Solvent Recovery Unit GAS410 must be used | |||
Spray line cleaning | Needle inside the nozzle to clean the mesh automatically | |||
Safety devices | Self-diagnostic functions (e.g. temperature aberration); Sample feed reversal | |||
Air spray pressure gauge | Bourdon tube: 600k Pa (6 kg/cm²) | |||
External dimensions W x D x H | 1060 x 880 x 1750 mm or 42 x 35 x 69 in | |||
Weight | 180 kg or 397 lbs | |||
Power source | Single Phase AC220V 50/60Hz 24A | |||
Included accessories | Sample liquid tube (Silicone tube – 2 pcs.), safety cover, static removal brush, air hose, exhaust duct | |||
Optional accessories | Organic Solvent Recovery Unit GAS410 | |||
Inlet/outlet Temperature Recorder: 212792 – factory installed | ||||
Viton/Tiron feeding tube: please inquire | ||||
Nozzle: 3 (standard) 4, 5 (optional) | ||||
Compressed air: 28 L/min air volume and 8 kgf/cm² compressed air is required | ||||
Type of gas: N₂ gas (99.99% purity, medical grade) is required when using GAS410 | ||||
Recommended Operational Units | GAS410 Organic Solvent Recovery Unit, GWS410 Organic Solvent Washing Unit |
